Bearing Unit Standard Bearing 7014 Dblp4 Contact Ball Bearing Factory

Welcome to choose KORTON INDUSTRIAL LIMITED.

NO 1. our adwantages:

1. 14 years bearing products manufacturing and 4 years exporting experiences.

2. OEM order and non-standard bearing order can be accepted.

3. Our main bearing products include Deep groove ball bearings, tapered roller bearings, cylindrical roller bearings, angular contact bearings, needle roller bearings, thrust ball bearings, spherical plain bearings, spherical bearings, automotive bearings pump bearings, and many nonstandard bearings are also in our product range.

4. Sample available

NO 2. Description: Angular Contact Ball Bearing

Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.

Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.

Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.

- Back-to-bacd arrangement (DB)
- Face to face arrangement (DF)
- Tandem arrangement (DT)
- Stamping steel cage (J)
- Stamping brass cage (Y)
- Nylon cage (TVP)
- High hardness fiber holder (TPA)
- One brass cage (MP)

NO 3. OEM all brand bearing

1. deep groove ball bearing 6000,6200,6300,6400,61800,61900,Z,RS,ZZ,2RS

2. spherical roller bearing 22200,22300,23000,24000,23100,24100,CA,CC,E,W33

3. cylindrical roller bearing N,NU,NJ,NN,NUP,E,ECP,ECM,ECJ

4. taper roller bearing 30200,30300,32200,32300,31300,32000

5. Aligning ball bearing 1200,1300,2200,2300,

6. needle roller bearing NA,NAV,NK,NKI,RNA,NK,RNAV,ZKLF,ZKLN,ZARF,ZARN

7. thrust ball bearing 51100,51200,51300,51400,E,M

8. angular contact ball bearing7000,7100,7200,7300,AC,BECBM,C

9. spherical plain bearing GE,GEG,GEEW,U,UC,UG,GX,GAC,SA,SABP

10.Wheel hub bearing /ceramic bearing/plastic bearing/lazy susan bearing

NO 4. Angular Contact Ball Bearing Specification:

Seals Types	2RS,OPEN
Vibration Level	Z1V1,Z2V2,Z3V3
Clearance	C2,C0,C3,C4,C5
Tolerance Codes	ABEC-1,ABEC-3,ABEC-5
Materral	GCr15-China/AISI52100-USA/Din100Cr6-Germany
MOQ	1Set at least
Delivery Time	15-45 days after contract
Payment Terms	TT/PAPAL/WESTERN UNION
Pavkage	Tube package+outer carton+pallets; Single box+outer carton+pallets; Tube pavkge+middle box+outer carton+pallets; According to your requirement

NO 5. Angular contact ball bearing Models and Size:

			(r/min)
	Principal dimensions			Speed ratings		Basic load ratings		(kg)
Bearing NO.	d	D	B			(kN)	(kN)	Mass
				Grease	Oil	Dynamic	Static
7000AC	10	26	8	19000	28000	4.75	2.12	0.018
7000C	10	26	8	19000	28000	4.92	2.25	0.018
7001AC	12	28	8	18000	26000	5.2	2.55	0.02
7001C	12	28	8	18000	26000	5.42	2.65	0.02
7002AC	15	32	9	17000	24000	5.95	3.25	0.028
7002C	15	32	9	17000	24000	6.25	3.42	0.028
7003AC	17	35	10	16000	22000	6.3	3.68	0.036
7003C	17	35	10	16000	22000	6.6	3.85	0.036
7004AC	20	42	12	14000	19000	10	5.78	0.064
7004C	20	42	12	14000	19000	10.5	6.08	0.064
7005AC	25	47	12	12000	17000	11.2	7.08	0.074
7005C	25	47	12	12000	17000	11.5	7.45	0.074
7006AC	30	55	13	9500	14000	14.5	9.85	0.11
7006C	30	55	13	9500	14000	15.2	10.2	0.11
7007AC	35	62	14	8500	12000	18.5	13.5	0.15
7008AC	40	68	15	15000	21000	16	12.9	0.21
7009C	45	75	16	14000	19000	19.87	16.36	0.24
7009AC	45	75	16	14000	19000	19.87	16.36	0.24
7010C	50	80	16	13000	17000	21	19	0.26
7010AC	50	80	16	13000	17000	21	19	0.26
7011C	55	90	18	12000	15000	26.1	22.6	0.36
7011AC	55	90	18	12000	15000	26.1	22.6	0.36
7012C	60	95	18	11000	14000	32.5	27	0.45
7012AC	60	95	18	11000	14000	32.5	27	0.45
7013C	65	100	18	9900	13000	35.2	30	0.5
7013AC	65	100	18	9900	13000	35.2	30	0.5
7014C	70	110	20	9200	12000	41.1	37.3	0.59
7014AC	70	110	20	9200	12000	41.1	37.3	0.59
7015C	75	115	20	8600	11000	42.5	40.7	0.69
7015AC	75	115	20	8600	11000	42.5	40.7	0.69
				(r/min)
	Principal dimensions			Speed ratings		Basic load ratings		(kg)
Bearing NO.	d	D	B			(kN)	(kN)	Mass
				Grease	Oil	Dynamic	Static
7016C	80	125	22	8000	11000	53.4	50.6	0.93
7016AC	80	125	22	8000	11000	53.4	50.6	0.93
7017C	85	130	22	7600	10000	54.6	53.7	0.95
7017AC	85	130	22	7600	10000	54.6	53.7	0.95
7018C	90	140	24	7100	9500	68.6	65.4	0.96
7018AC	90	140	24	7100	9500	68.6	65.4	0.96
7019C	95	145	24	6800	9000	73.5	73	1.17
7019AC	95	145	24	6800	9000	73.5	73	1.17
7020C	100	150	24	6400	8600	75.5	77	1.25
7020AC	100	150	24	6400	8600	75.5	77	1.25
7021C	105	160	26	6100	8100	88	89.5	1.53
7021AC	105	160	26	6100	8100	88	89.5	1.53
7022C	110	170	28	5800	7700	101	101	1.91
7022AC	110	170	28	5800	7700	101	101	1.91
7024C	120	180	28	5300	7100	103	108	2.04
7024AC	120	180	28	5300	7100	103	108	2.04
7026C	130	200	33	4900	6500	129	137	3.73
7026AC	130	200	33	4900	6500	129	137	3.73
7028C	140	210	33	4500	6000	132	145	3.96
7028AC	140	210	33	4500	6000	132	145	3.96
7030C	150	225	35	4200	5600	151	168	4.82
7030AC	150	225	35	4200	5600	151	168	4.82
7200AC	10	30	9	18000	26000	5.58	2.82	0.03
7200C	10	30	9	18000	26000	5.82	2.95	0.03
7201AC	12	32	10	17000	24000	7.1	3.35	0.035
7201C	12	32	10	17000	24000	7.35	3.52	0.035
7202AC	15	35	11	16000	22000	8.35	4.4	0.043
7202C	15	35	11	16000	22000	8.68	4.62	0.043
7203AC	17	40	12	15000	20000	10.5	5.65	0.062
7203C	17	40	12	15000	20000	10.8	5.95	0.062
				(r/min)
	Principal dimensions			Speed ratings		Basic load ratings		(kg)
Bearing NO.	d	D	B			(kN)	(kN)	Mass
				Grease	Oil	Dynamic	Static
7204C	20	47	14	25000	34000	15	8.6	0.1
7204AC	20	47	14	25000	34000	15	8.6	0.1
7204B	20	47	14	25000	34000	13.31	7.65	0.12
7205C	25	52	15	21000	28000	16.2	10.3	0.13
7205AC	25	52	15	21000	28000	16.2	10.3	0.13
7205B	25	52	15	21000	28000	14.03	8.63	0.14
7206C	30	62	16	18000	24000	16.94	12.14	0.2
7210C	50	90	20	12000	15000	32.91	26.83	0.45
7210AC	50	90	20	12000	15000	32.91	26.83	0.45
7211AC	55	100	21	11000	14000	40.71	33.96	0.6
7212AC	60	110	22	9700	13000	46.9	40.53	0.81
7213AC	65	120	23	9000	12000	53.67	46.22	1.01
7214AC	70	125	24	8300	11000	56.04	49.52	1.08
7215AC	75	130	25	7800	10000	60.91	54.34	1.68
7216AC	80	140	26	7300	9700	68.81	63.35	1.48
7217AC	85	150	28	6900	9100	77.5	72.6	1.88
7218AC	90	160	30	6500	8600	89.91	82.6	2.26
7219AC	95	170	32	6100	8100	96.5	88.8	2.78
7220AC	100	180	34	5800	7700	111.2	96.8	3.32
7221AC	105	190	36	5500	7300	119.2	105.6	3.95
7222AC	110	200	38	5200	6900	129.6	118.4	4.65
7224AC	120	215	40	4800	6400	139.2	132.8	5.49
7226AC	130	230	40	4400	5800	156.8	156.8	6.21
7228AC	140	250	42	4000	5300	174.4	187.2	7.76
7230AC	150	270	45	3700	5000	248	280	9.75
7232AC	160	290	48	2400	2600	230	263	12.1
7234AC	170	310	52	2400	2400	272	331	15.1
7236AC	180	320	52	2200	2400	303	390	18.1
7238AC	190	340	55	2000	2200	303	390	18.8
7240AC	200	360	59	1800	2000	324	423	22.4

Bearing No.			Dimensions(mm)			( KN)		Weight
New Model	ZZ	2RS	d	D	B	Cr	Cor	Mass(kg)
3200A	3200zz	32002RS	10	30	14.3	7	3.8	0.049
3201A	3201zz	32012RS	12	32	15 9	9 2	5 1	0.057
3202A	3202zz	32022RS	15	35	15.9	10	6.1	0.064
3203A	3203zz	32032RS	17	40	17.5	12 8	7 9	0.096
3204A	3204zz	32042RS	20	47	20.6	19	12.1	0.153
3205A	3205zz	32052RS	25	52	20.6	20.6	14 3	0.175
3206A	3206zz	32062RS	30	62	23.8	28.6	20.4	0.286
3207A	3207zz	32072RS	35	72	27	38	27.8	0.436
3208A	3208zz	32082RS	40	80	30.2	42.5	32.5	0.59
3209A	3209zz	32092RS	45	85	30.2	48 0	37	0.64
3210A	3210u	32102RS	50	90	30.2	51	42	0.689
3211A	3211zz	32112RS	55	100	33.3	63 0	53	0.986
3212A	3212zz	32122RS	60	110	36.5	71.5	58.5	1.270
3213A	3213zz	32132RS	65	120	38 1	83.5	72.5	1.570
3214A	3214zz	32142RS	70	125	39.7	87.5	79.5	1.800
3215A	3215zz	32152RS	75	130	41.3	90	80.5	1.900
3216A	3216zz	32162RS	80	140	44.4	106	95.5	2.39
3217A	3217zz	32172RS	85	150	49.2	112	106	3.06
3218A	3218zz	32182RS	90	160	52.4	140	129	3.73
3219A	3219zz	32192RS	95	170	55 6	163	184	5.100
3220A	3220zz	32202RS	100	180	60.3	210	240	6.14
3300A	3300zz	33002RS	10	35	19	9.2	5.1	0.092
3301A	3301zz	33012RS	12	37	19	10	6.1	0.109
3302A	3302zz	33022RS	15	42	19	12 8	7.9	0.132
3303A	3303zz	33032RS	17	47	22.2	20.4	12.1	0.181
3304A	3304zz	33042RS	20	52	22 2	20.6	127	227
3305A	3305zz	33052RS	25	62	25.4	30.5	20.5	0.362
3306A	3306zz	33062RS	30	72	302	39.5	27.5	0.553
3307A	3307zz	33072RS	35	80	34.9	49.5	35	0.766
3308A	3308zz	33082RS	40	90	36.5	60 5	44	1.01
3309A	3309zz	33092RS	45	100	39.7	72.5	54	1.34
3310A	3310zz	33102RS	50	110	44.4	85.5	64.5	1.81
3311A	3311zz	33112RS	55	120	49.2	106	82	2.32
3312A	3312zz	33122RS	60	130	54	122	95.5	3.05
3313A	3313zz	33132RS	65	140	58.7	138	109	3,960
3314A	3314zz	33142RS	70	150	63.5	155	125	4.74
3315A	3315zz	33152RS	75	160	68.3	168	141	5.65
3316A	3316zz	33162RS	80	170	68.3	175	151	7.21
3317A	3317zz	33172RS	85	180	73	196	240	8.3
3318A	3318zz	33182RS	90	190	73	225	266	9.01

NO 6. Our Bearing Factory:
Bearing Unit Standard Bearing 7014 Dblp4 Contact Ball Bearing Factory

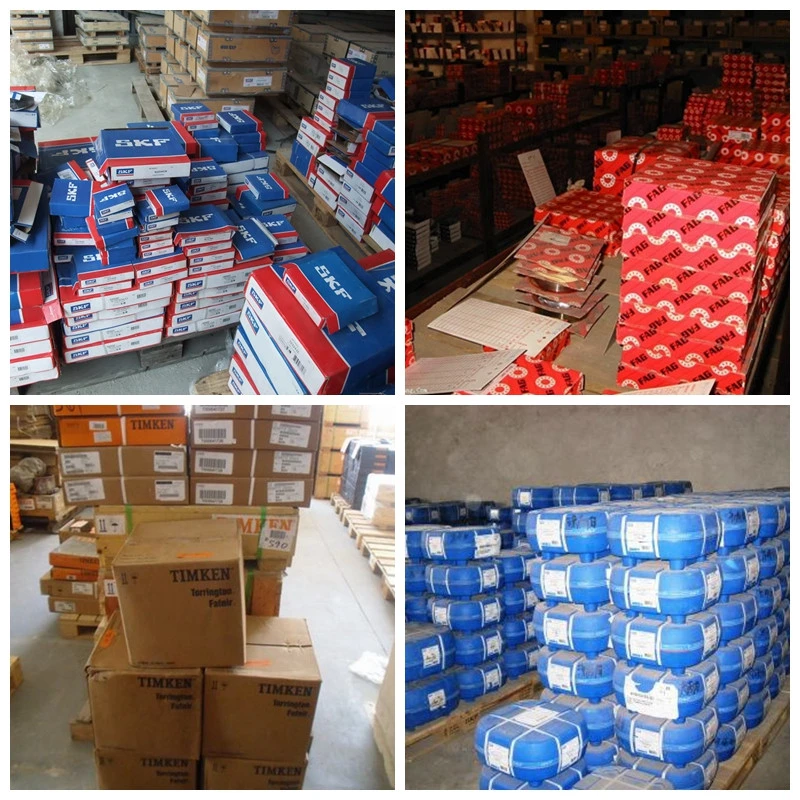

NO 8. Our Bearing Warehouse:
Bearing Unit Standard Bearing 7014 Dblp4 Contact Ball Bearing Factory

NO 9. Our Bearing Packaging Box:
Bearing Unit Standard Bearing 7014 Dblp4 Contact Ball Bearing Factory

.

Why Choose Us:

l Jinan TIANYUAN bearing company has 14 years manufacture experience and is one of the biggest adjustment center in north of China.

l We have large stock of original brand and our own brand bearing.

l Sample is available.

l We can accept OEM service.

l Jinan Tianyuan Bearing Co., Ltd. Was founded in March 2008. We were principally engaged in the research, development and manufacture of bearings in the early stage. Now we are mainly engaged in the sales of internationally-famous brand bearings. Our products are sold in Britain, America, Japan, Italy and Southeast Asia, well appreciated by their purchasers.

Good After-Sales Service

Great Service Is Our Mission!

Good Quality, Lowest Price, Best Service

Bearing unit standard bearing 7014 Dblp4 contact ball bearing factory
